Aico Japan AW40 Steel Bar Bender
KSh159,999
Key Operational Features
-
High Bending Capacity (Up to 40mm): Handles large-diameter structural rebar used in building foundations, columns, beams, bridge decks, and civil engineering projects.
-
Motor-Driven Rotating Working Plate: Provides smooth, continuous torque transmission to form precise, repeatable arcs and angle bends without deforming the bar steel.
-
Adjustable Angle Setting & Stop Pins: Comes equipped with interchangeable bending pins, bushes, and angle-setting stops to accommodate different radius requirements, stirrups, offset bends, and hooks.
-
Foot Pedal Switch Operation: Hands-free foot pedal activation allows the operator to control the bending cycle while positioning and guiding the rebar safely.
-
Heavy-Duty Gearbox & Enclosed Frame: Sealed oil-bath gearbox and dust-proof electrical cabinet ensure durability during continuous daily use on exposed construction sites.

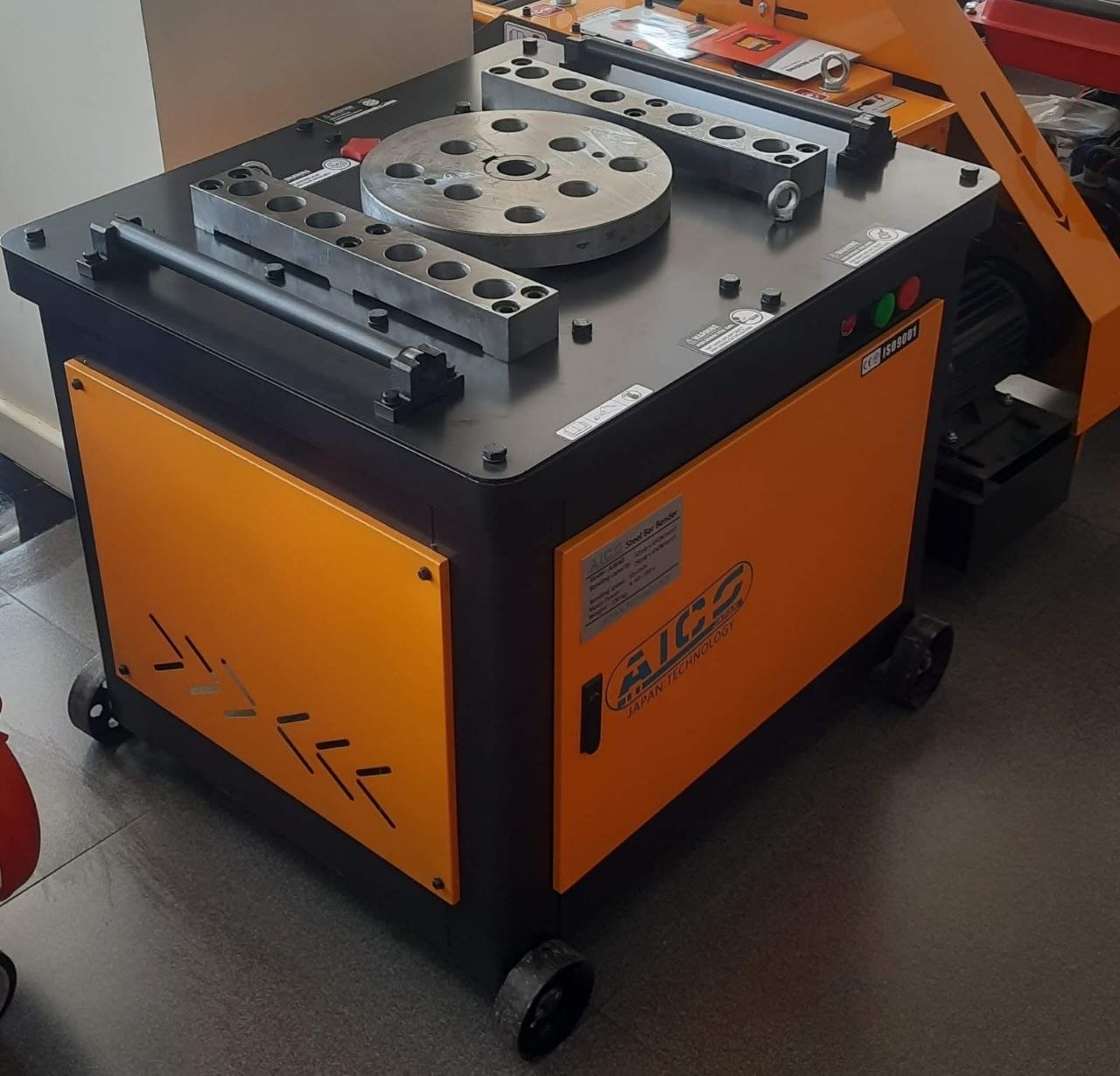

Aico Japan AW40 Steel Bar Bender is a heavy-duty, motor-driven rebar processing machine engineered for precise, high-speed bending of reinforcing steel bars on structural job sites, precast concrete plants, and steel fabrication yards.
Designed to work directly alongside the AW40 Steel Bar Cutter, this machine replaces manual bending levers with a mechanical gear-driven system to produce uniform angles across high-volume rebar production runs.
Technical Specifications
| Parameter | Specification |
| Model | AW40 |
| Primary Function | Automatic Rebar & Round Bar Bending |
| Max Bending Capacity | Up to 40 mm diameter rebar (Carbon steel / Deformed bar) |
| Drive Mechanism | Heavy-duty gearbox with brake motor and rotating bending plate |
| Bending Angle Range | 0° to 180° (Fully adjustable angle pin system) |
| Operation Control | Foot pedal switch & manual dial control |
| Power Source | High-output electric motor (380V 3-Phase standard / 220V configuration) |
| Machine Frame | Heavy-gauge steel cabinet with enclosed electrical panel |
| Mobility / Base | Floor-standing heavy chassis with site movement wheels |
