70mm² Hydraulic Cable Crimping Tool
KSh6,500
Key Features & Advantages
Compact & Lightweight: Smaller and significantly lighter than 300mm² models, making it ideal for overhead electrical work, vehicle battery wiring, and tight DB boards.
Hexagonal Compression: Creates tight, low-resistance mechanical joints that eliminate hot spots and voltage drops on power cables.
Easy Die Swapping: Features spring-loaded pins for quick, tool-free changing of interchangeable die pairs across standard wire sizes.
Ergonomic Handles: Rubberized non-slip handles allow single-person operation with minimal manual effort required to generate crimping force.
70mm² Hydraulic Cable Crimping Tool (commonly model YQK-70) is a compact, handheld hydraulic crimper designed for terminating light-to-medium gauge electrical cables, battery leads, and copper or aluminum cable lugs.
Technical Specifications
| Feature | Details / Standard Range |
| Crimping Range | $4\text{ mm}^2$ to $70\text{ mm}^2$ (Copper/Aluminum Lugs) |
| Max Crimping Force | 6 to 8 Tonnes (approx. 50–60 kN) |
| Crimping Profile | Hexagonal crimp |
| Included Die Set | 4, 6, 10, 16, 25, 35, 50, 70 $\text{mm}^2$ |
| Stroke Capacity | 10 mm – 12 mm |
| Head Design | $180^\circ$ Rotatable C-style head |
| Pressure Release | On/Off manual relief valve knob |

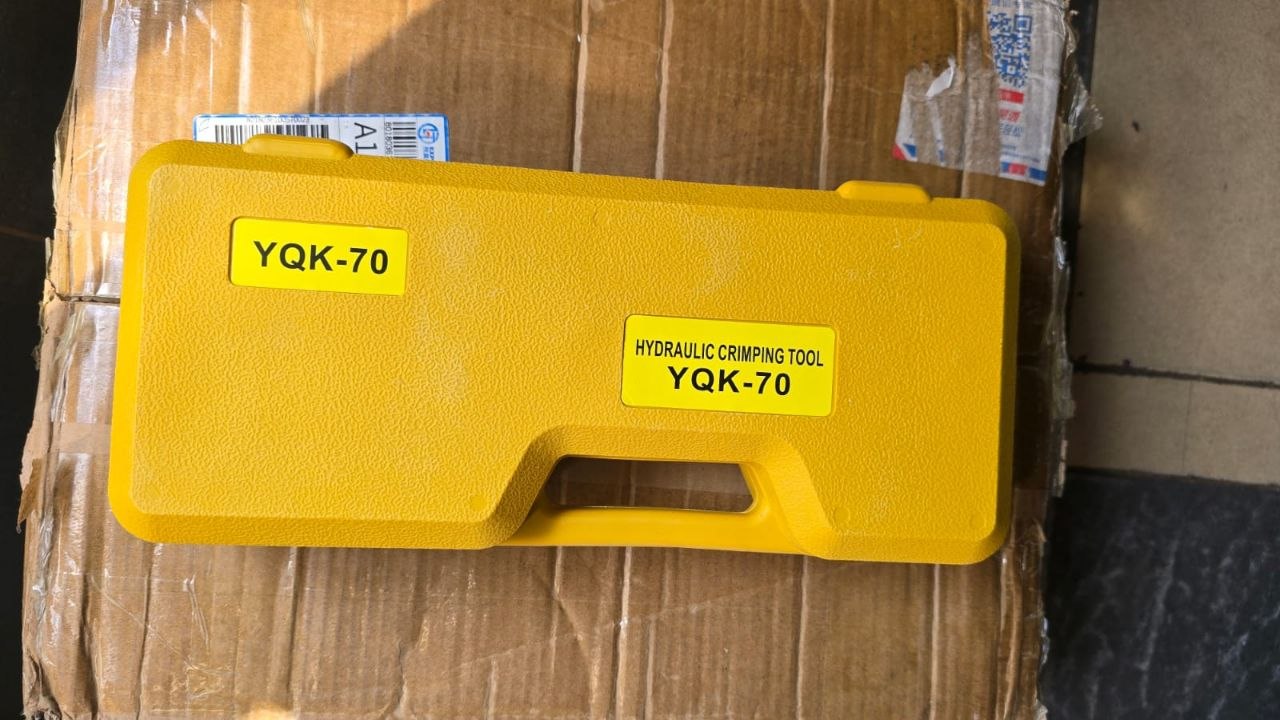

| Packaging | Carrying case with spare rubber O-rings |
