10-tonne hydraulic body jack kit

10-tonne hydraulic body jack kit (often called a 10-ton Porta Power) is a versatile hydraulic repair system designed for heavy-duty metal fabrication, vehicle frame straightening, and machinery alignment. While it operates on the same multi-directional push-pull principles as the 20-tonne version, the 10-tonne model is significantly lighter, easier to maneuver, and ideal for standard automotive body shops and general mechanical repairs.

Key Specifications

• Load Capacity: 10 Tonnes (22,000 lbs)

• Ram Stroke: Approximately 130 mm to 150 mm (5 to 6 inches)

• Working Pressure: High-pressure hydraulic fluid delivery via a manual hand pump

• Kit Weight: ~20 kg to 26 kg (making it much more portable than the heavier 20-ton kits)

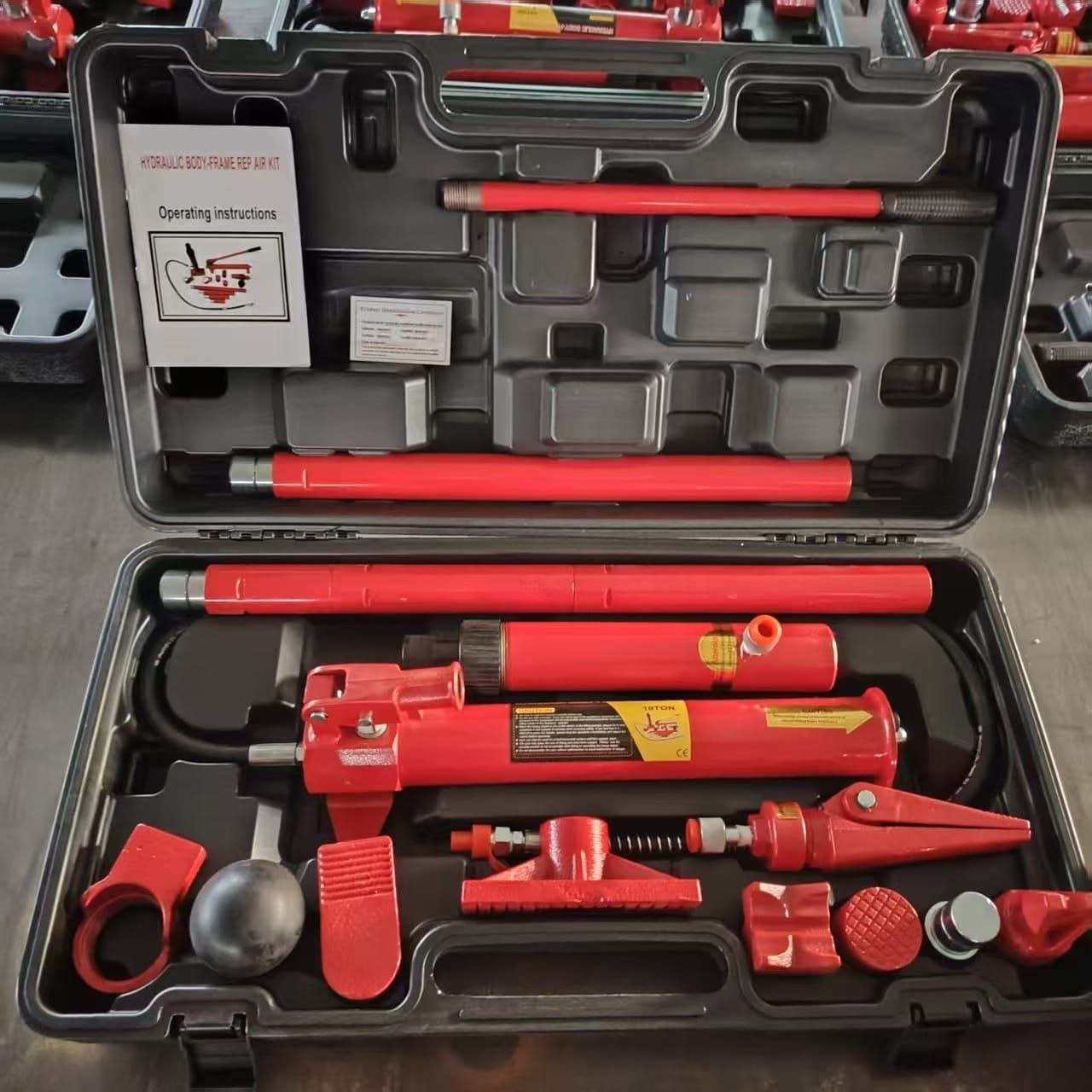

Core Components Included in the Kit

• Manual Hydraulic Pump: Features a high-pressure output with an internal automatic safety overload valve to protect the system from over-pressurization.

• 10-Ton Hydraulic Ram: The main hydraulic cylinder that generates the pushing force.

• Extension Tubes: A series of heavy-gauge steel extension pipes (typically 4 pieces of varying lengths) that screw together to span longer gaps and extend the reach of the ram.

• Attachment Heads: A collection of specialized ends including a rubber flex head, wedge head, serrated saddle, V-base, and male/female connectors to securely grip or push against different surface contours without slipping.
